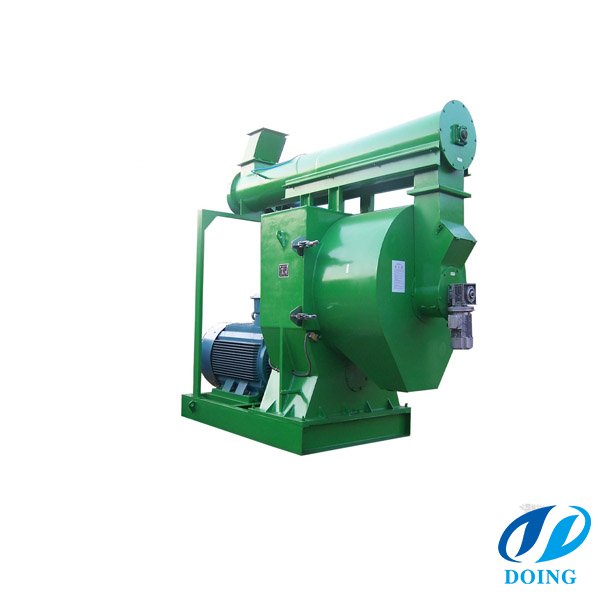

Ring die wood pellet mill
Introduction of ring die wood pellet mill:
In a ring die wood pellet mill the die encompasses the rollers, hence the 'ring' description. The rollers apply pressure to the inner surface of the die, compressing material through the outer surface of the die. Material is forced fed horizontally into the centre of the ring, wood pellets then fall vertically away from the ring. Small ring die wood pellet mills do exist, however they are not as popular due to their more complicated design and higher costs. However ring die wood pellet mills do have certain benefits over flat die wood pellet mills.

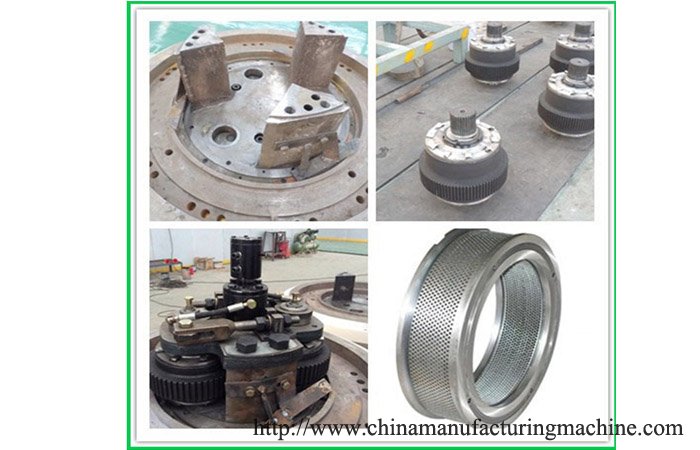

Some parts of ring die wood pellet mill
Features of ring die wood pellet mill
1. Ring die wood pellet mill is widely used to make pellets from light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2. The feeder's especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;
3. Feeder, conditioner and chute are made of stainless steel with long service life;
4. Ring die wood pelelt mill is with magnet and over load protection system, which protects the machine during production;
5. Feeder has a variable speed controller to meet different outputs requirements;
6. Ring die wood pelelt mill makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 20% when compared to a machine with a belt conveyer;

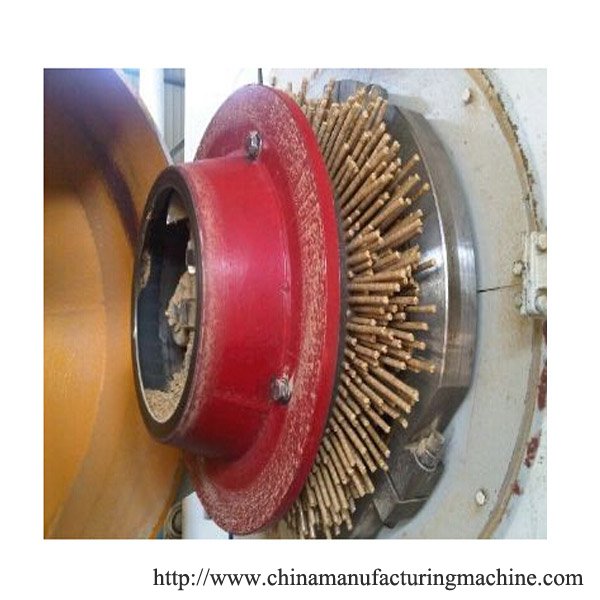

Final wood pellets from ring die wood pellet mill
It's worth noting that in order to make pellets, you need specialized equipment. That said, there are two main requirements, the raw material, and the equipment to make the pellets. The product of wood pellet mill in our Doing Machinery has adopted the newest technology.The pellet from the pellet machine is pretty smooth and can be shaped whatever the clients'need.
