Durable CE certificate wood pellet mill

Wood pellet mill

Technical parameters of DY series pellet mill

Model	Capacity(kg.h)	Power (kw)	Diameter of Pellet(mm)	Weight (T)	Dimension (mm)
DY 560	1000-1500	90	4-12	6.1	2600*1300*2310
DY 720	1500-2500	160	4-12	7.3	2910*1300*2410
DY 850	2000-3000	220	4-12	15	3500*1700*2900
DY 920	3000-4500	315	4-12	18.5	3900*1780*3500
DY 1050	4500-6000	315	4-12	22	4200*1850*3600

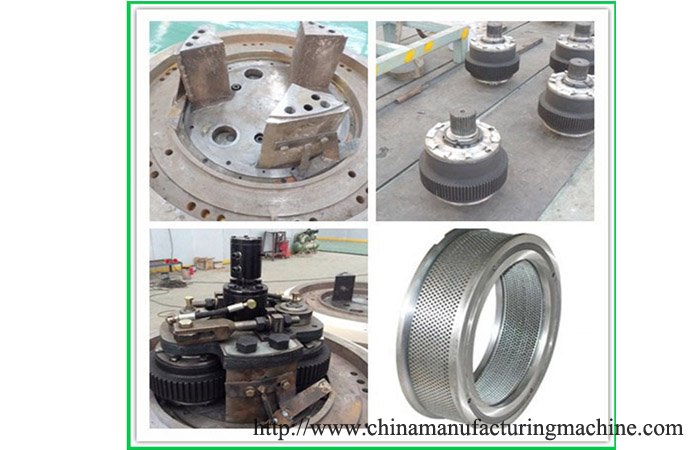

Main parts of wood pellet mill

Introduction of the pellet mill

Pellet mill,also known as a pellet press,is a type of mill or machine press used to create pellets from powdered material.Pellet mills are unlike grinding mills,in that they combine small materials into a larger,homogeneous mass,rather than break large materials into smaller pieces.

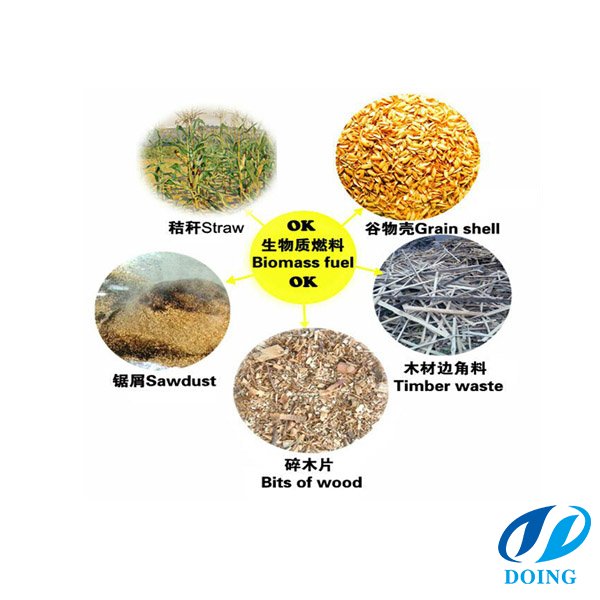

Raw material for wood pelelt mill

About the pellets produced by our wood pellet mill:

(1)The finished pellets diameter can be  4mm, 6mm, 8mm, 10mm, and 12mm according to clients’ needs.
(2)high density:1100-1400kg/m3
(3)less ash content:The line include a dedust equipment.
(4)moisture:less 10%
(5)high fuel value:3800-4800 Kcal for woods type.

The main parts of wood pellet mill include the following

(1) Wood crusher (crush the big wood into small pieces like sawdust)
(2) Dryer (dry the raw material to proper moisture before making pellets)
(3) Pellet mill(press raw material into pellets)
(4)Cooler (cool down pellets and remove some moisture)
(5) Screener (remove dust, and broken pellets)
(6)Packing machine (pack pellets into bags of required weight)



Final product from wood pellet mill


Above is the final product from the ring die pellet mill.According to the needs' of clients, ring die pellet mill in our company Doing Machinery can pellet different shapes product.And the material is also various.

---
