Small scale wood chipping machine

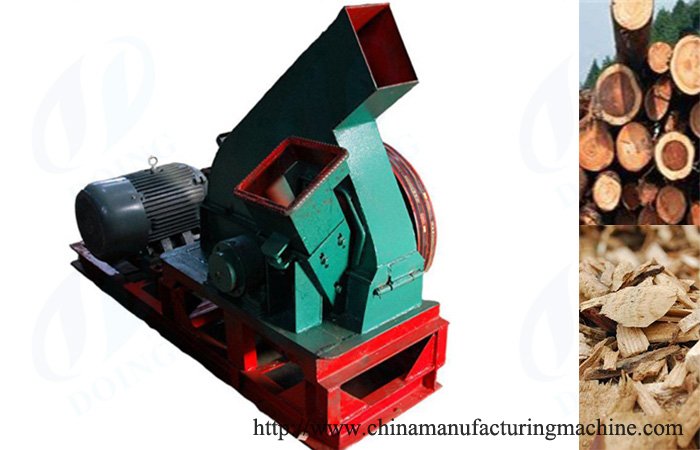

Wood chipping machine and the products

Description of wood chipping machine:
1.DoingCompany wood chipping machine is used for processing wood logs or tree branches into 20mm-40mm.
2.wood chips for various wood products industries and plants.
3.Wood chipping machine is one of wood processing machines, widely used in spinning, paper mill.
4.Wood chipping machine could cut the log, undersized log into even length, smooth cut, even depth chips,
5.Wood chipping machine also can be used to cut branches, board and so on.

Wood chipping machine

1. Wood chipping machine consists of rack, cutter, feeding hole, cover and electronic system. The length of chips could be adjustable, in order to suit for different requirement.
2. The structure of wood chipping machine is compact and reasonable, easy operation and with high effective.
3.Chipping and pulverizing wood, tree trunk, stalk, bamboo, wooden blocks, tree branches, tree leaves, tree bark, animal feed, chemical raw material etc.
4.This wood chipping machine can use electric motor, diesel engine, gasoline engine etc. as driving force.

Knife of wood chipping machine

Specification of wood chipping machine:

Model	Feeding hole(mm)	Working capacity(t/h)	Motor	Diesel engine	600	400	4
500	150*150	2-3	11-15kw	15-20hp	650	600	4
700	250*250	4-5	18.5-22kw	25-30hp	550	800	4
950	300*300	6-8	30kw-37kw	40hp	600	1100	4
1210	380*380	10-12	75kw	90hp	600	1410	4



Wood and wood chips

Structure of wood chipping machine:
1.Wood chipping machine include main engine, engine base, coupling, under-frame.
2. Main engine of wood chipping machine consists of cutter head, upper and lower housing, inlet and outlet.The flying knife, bottom knife and flying knife bolt adopting the special steel and are made specially, which prolongs the life of the machine.
3.Cutter head is the very part worn worst.






---
